Measurements

Create measurements to capture and validate data within phases.

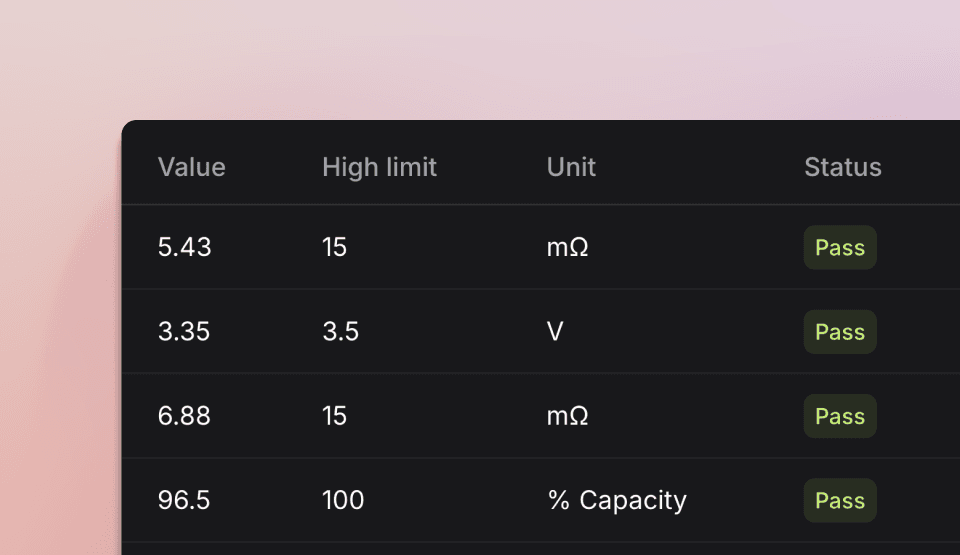

OpenHTF measurements section header showing validation and data capture for tests with TofuPilot integration.

Overview

Hardware tests are more complex than simple pass/fail checks like in software testing. They often require measuring physical values and comparing them to limits. OpenHTF simplifies logging and validating numeric, string, and boolean values, either individually or in arrays, using built-in decorators.

Numeric

You can define and validate numeric measurements.

main.py

import openhtf as htf
from openhtf.util import units

@htf.measures(
    htf.Measurement("temperature")     # Declares the measurement name
    .in_range(0, 100)                  # Defines the validator
    .with_units(units.DEGREE_CELSIUS)  # Specifies the unit
    .with_precision(1)                 # Rounds to 1 decimal place
)
def phase_temperature(test):
    test.measurements.temperature = 25 # Set the temperature value to 25°C

def main():
    test = htf.Test(phase_temperature)
    test.execute(lambda: "PCB001")

if __name__ == "__main__":
    main()

Validators

  • Name
    .in_range(minimum, maximum)
    Type
    number, number
    Description

    Ensure the measurement is within the given range.

  • Name
    .within_percent(value, percent)
    Type
    number, number
    Description

    Ensure the measurement is within the given percentage range.

  • Name
    .equals(value)
    Type
    number
    Description

    Ensure the measurement exactly matches the specified value.

  • Name
    .with_validator(lambda)
    Type
    function → bool
    Description

    Apply a custom validator function to the measurement.

Options

  • Name
    .with_units(units)
    Type
    UnitDescriptor
    Description

    Define unit to the measurement (e.g. AMPERE, VOLT, full list here).

  • Name
    .with_precision(precision)
    Type
    int
    Description

    Round the value to the specified precision before validation.

main.py

import openhtf as htf
from openhtf.util import units

@htf.measures(
    htf.Measurement("voltage")
    .in_range(maximum=10)
    .with_units(units.VOLT)
)
def phase_voltage(test):
    test.measurements.voltage = 5.3

@htf.measures(
    htf.Measurement("memory")
    .equals(8)
    .with_units(units.GIGABYTE)
)
def phase_memory(test):
    test.measurements.memory = 8

def main():
    test = htf.Test(phase_voltage, phase_memory)
    test.execute(lambda: "PCB001")

if __name__ == "__main__":
    main()

String

You can define and validate string measurements.

main.py

import openhtf as htf
from openhtf.util import units

@htf.measures(
    htf.Measurement("firmware_version")
    .equals("1.2.4")
)
def phase_firmware(test):
    test.measurements.firmware_version = "1.2.4"

def main():
    test = htf.Test(phase_firmware)
    test.execute(lambda: "PCB001")

if __name__ == "__main__":
    main()

Validators

  • Name
    .equals(value)
    Type
    str
    Description

    Ensure the measurement exactly matches the specified value.

  • Name
    .matches_regex(pattern)
    Type
    str
    Description

    Ensure the string matches the specified regex pattern.

  • Name
    .with_validator(lambda)
    Type
    function → bool
    Description

    Apply a custom validator function to the measurement.

Boolean

You can define and validate boolean measurements.

main.py

import openhtf as htf

@htf.measures(
    htf.Measurement("is_led_switch_on")
    .equals(True)
)
def phase_led(test):
    test.measurements.is_led_switch_on = True

def main():
    test = htf.Test(phase_led)
    test.execute(lambda: "PCB001")

if __name__ == "__main__":
    main()

Validators

  • Name
    .equals(value)
    Type
    bool
    Description

    Ensure the measurement exactly matches the specified value.

  • Name
    .with_validator(lambda)
    Type
    function → bool
    Description

    Apply a custom validator function to the measurement.

Multiple measurements

You can also use multiple measurements in a single phase.

main.py

import openhtf as htf
from openhtf.util import units

@htf.measures(
    htf.Measurement("is_connected").equals(True),
    htf.Measurement("firmware_version").equals("1.2.7"),
    htf.Measurement("temperature").in_range(0, 100).with_units(units.DEGREE_CELSIUS),
)
def phase_multi_measurements(test):
    test.measurements.is_connected = True
    test.measurements.firmware_version = "1.2.7" if test.measurements.is_connected else "N/A"
    test.measurements.temperature = 22.5

def main():
    test = htf.Test(phase_multi_measurements)
    test.execute(lambda: "PCB001")

if __name__ == "__main__":
    main()

Multidimensional

You can capture data in arrays, like time-series or across categories, with multidimensional measurements.

main.py

import openhtf as htf
from openhtf.util import units
import random
import time

@htf.measures(
    htf.Measurement("voltage_over_time")
    .with_dimensions(units.SECOND, units.VOLT)
)
def phase_voltage_measurement(test):
    for t in range(10):
        timestamp = t
        voltage = round(random.uniform(3.3, 3.5), 2)
        test.measurements.voltage_over_time[timestamp, voltage] = 0
        time.sleep(0.1)

def main():
    test = htf.Test(phase_voltage_measurement)
    test.execute(lambda: "PCB001")

if __name__ == "__main__":
    main()

Options

  • Name
    .with_dimensions(*dims)
    Type
    UnitDescriptor
    Description

    Set multiple units for multidimensional measurements.

Advanced use cases

You can leverage advanced OpenHTF options to handle more complex phase execution cases.

Marginal

You can mark a measure as marginal to show it’s close to failing, even if it passes.

main.py

import openhtf as htf
from openhtf.util import units

@htf.measures(
    htf.Measurement('resistance')
    .with_units('ohm')
    .in_range(minimum=5, maximum=17, marginal_minimum=9, marginal_maximum=11)
)
def phase_marginal(test):
  test.measurements.resistance = 13

def main():
    test = htf.Test(phase_marginal)
    test.execute(lambda: "PCB001")

if __name__ == "__main__":
    main()

Terminal

================= test: openhtf_test  outcome: PASS (MARGINAL) =================

Documentation

You can add a description to your measurements.

main.py

import openhtf as htf

@htf.measures(
    htf.Measurement("temperature")
    .in_range(0, 100)
    .doc("This measurement tracks the ambient temperature during the test.")
)
def phase_temperature(test):
    test.measurements.temperature = 25

def main():
    test = htf.Test(phase_temperature)
    test.execute(lambda: "PCB001")

if __name__ == "__main__":
    main()

Dynamic naming

You can customize measurement names dynamically at execution.

main.py

import openhtf as htf

@htf.measures(
    htf.Measurement("test_result_{level}")
    .with_args(level="high")
    .equals(True)
)
def phase_test(test):
    test.measurements.test_result_high = True

def main():
    test = htf.Test(phase_test)
    test.execute(lambda: "PCB001")

if __name__ == "__main__":
    main()

Transformation function

You can apply measurement transformation functions before validation.

main.py

import openhtf as htf

@htf.measures(
    htf.Measurement("voltage")
    .in_range(0, 10)
    .with_transform(lambda x: x * 1.1)
    .with_units("V")
)
def phase_voltage(test):
    test.measurements.voltage = 5  # Value will be transformed to 5.5 before validation

def main():
    test = htf.Test(phase_voltage)
    test.execute(lambda: "PCB001")

if __name__ == "__main__":
    main()
